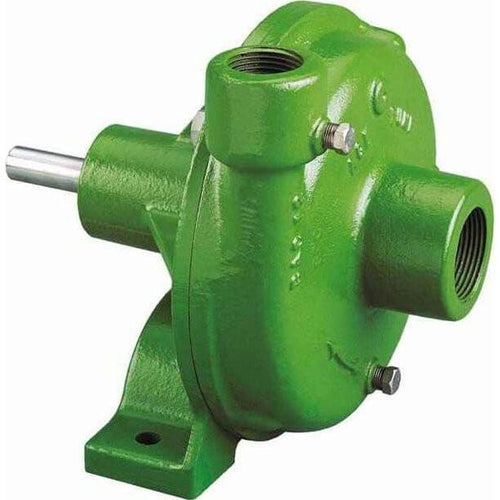

Belt Driven Cast Iron Pump with 1-1/4" Suction x 1" Discharge Ace Pumps FMC-MAG-D
Weight (lbs.): 23, Material: Cast Iron, Technical Specifications: Ace Pumps FMC-MAG-D Product Specifications, Ace Pumps EDP #: 47040, Power Type: Belt Driven, Inlet: 1-1/4" NPT, Outlet: 1" NPT, Maximum Flow Rate (GPM): 70, Maximum Pressure (PSI): 130, Part Breakdown:
, Reference Number Part Number EDP Number Description Required, 1 41110 41110 Pipe plug,1/8" NPT 3, 1 41120 41120 Pipe plug,1/8" NPT, stainless steel (optional) 3, 2 BAC-12 40250 Volute, 1 1/4" x 1", cast iron 1, 3 BAC-26-VALOX 40430 Impeller, Valox, left hand thread 1, 3 BAC-26-Cl 40432 Impeller, cast iron, left hand thread (optional) 1, *4 BAC-4A 40005 "O" Ring for BAC-12 volute seal, effective Apr. '96 1, *4 BAC-4 40010 Gasket, 4 hole 1, *5 BAC-7V 40151 Seal, Viton mechanical seal (includes 40160 "O" ring) 1, 5 BAC-7SC 40152 Sea , S con carb de mechan ca sea ( nc udes 40160 "O" R ng)(opt ona ) 1, 5A 40160 40160 "O" Ring for BAC-6 shaft 1, 6 BAC-14-MAG 40285 Mounting frame, machined to accept magnetic clutch assembly 1, 7 40930 40930 Cap screw, 3/8" NC x 3/4" Hex head, stainless steel (optional) 4, 7 40950 40950 Cap screw, 3/8" NC x 3/4" Hex head 4, 8 BAC-54 41130 Slinger 1, 9 BAC-33
| Reference Number | Part Number | EDP Number | Description | Required |
| 1 | 41110 | 41110 | Pipe plug,1/8" NPT | 3 |
| 1 | 41120 | 41120 | Pipe plug,1/8" NPT, stainless steel (optional) | 3 |
| 2 | BAC-12 | 40250 | Volute, 1 1/4" x 1", cast iron | 1 |
| 3 | BAC-26-VALOX | 40430 | Impeller, Valox, left hand thread | 1 |
| 3 | BAC-26-Cl | 40432 | Impeller, cast iron, left hand thread (optional) | 1 |
| *4 | BAC-4A | 40005 | "O" Ring for BAC-12 volute seal, effective Apr. '96 | 1 |
| *4 | BAC-4 | 40010 | Gasket, 4 hole | 1 |
| *5 | BAC-7V | 40151 | Seal, Viton mechanical seal (includes 40160 "O" ring) | 1 |
| 5 | BAC-7SC | 40152 | Sea , S con carb de mechan ca sea ( nc udes 40160 "O" R ng)(opt ona ) | 1 |
| 5A | 40160 | 40160 | "O" Ring for BAC-6 shaft | 1 |
| 6 | BAC-14-MAG | 40285 | Mounting frame, machined to accept magnetic clutch assembly | 1 |
| 7 | 40930 | 40930 | Cap screw, 3/8" NC x 3/4" Hex head, stainless steel (optional) | 4 |
| 7 | 40950 | 40950 | Cap screw, 3/8" NC x 3/4" Hex head | 4 |
| 8 | BAC-54 | 41130 | Slinger | 1 |
| 9 | BAC-33 | 40810 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 10 | BAC-37 | 40870 | Bearing, BAC-6 driven shaft | 2 |
| 11 | BAC-32 | 40790 | Snap ring, external, BAC-6 driven shaft | 2 |
| 12 | BAC-32-S | 40795 | Spacer for BAC-6 shaft | 1 |
| 13 | BAC-6 | 40050 | Shaft, 5/8" Driven shaft, left hand course thread (optional) | 1 |
| 13 | BAC-6- SS | 40070 | Shaft, 5/8" Driven shaft, left hand thread, stainless steel | 1 |
| 14 | BAC-50 | 41080 | Key, 3/16" x 3/16" x 1 1/4" | 1 |
| 15 | 41477 | 41477 | Spacer, clutch | 1 |
| 16 | 41476 | 41476 | Coil ring, 12 volt, DC activated | 1 |
| 17 | 41479 | 41479 | 5 1/4" Pulley assembly complete with bearing and clutch driver | 1 |
| # | RK-FMC | 52700 | Repair kit for FMC series | - |
| # | 41475 | 41475 | Magnetic clutch assembly, includes 41476, 41477, and 41479 | - |
