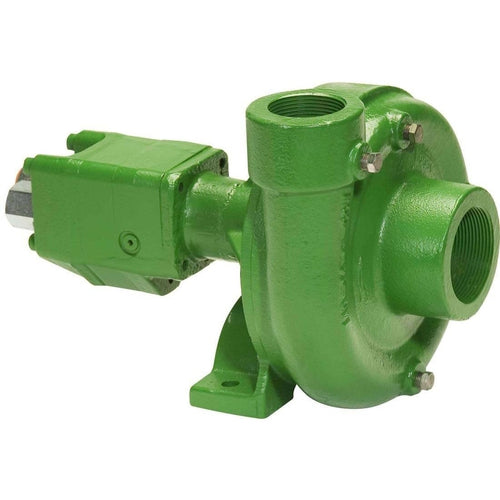

Ace 203 Hydraulic Driven Cast Iron Pump with 1-1/4" Suction x 1" Discharge Ace Pumps FMC-HYD-203
Weight (lbs.): 26, Material: Cast Iron, Instruction Manual: Ace Pumps FMC-HYD-203 Instruction Manual, Technical Specifications: Ace Pumps FMC-HYD-203 Product Specifications, Engine: Ace 203, Ace Pumps EDP #: 49826, Power Type: Hydraulic, Hydraulic Flow Rate: 3, Gasket Material: Viton, Inlet: 1-1/4" NPT, Outlet: 1" NPT, Maximum Flow Rate (GPM): 80, Maximum Pressure (PSI): 100, Part Breakdown:
, Reference Number Part Number EDP Number Description Required, 1 41110 41110 Pipe plug 3, 1 41120 41120 Pipe plug, stainless steel (optional) 3, 2 BAC-12 40250 Volute, 1 1/4" x 1" 1, 3 BAC-23-A 40391 Nut, 3/8" NF, cad plated 1, 4 BAC-24-HYD-SS 40400 Washer, 3/8" star, stainless steel 1, 5 BAC-26-HYD-VALOX 40440 Impeller, Valox, keyway 1, 5 BAC-26-HYD-Cl 40442 Impeller, cast iron, keyway (optional) 1, *6
| Reference Number | Part Number | EDP Number | Description | Required |
| 1 | 41110 | 41110 | Pipe plug | 3 |
| 1 | 41120 | 41120 | Pipe plug, stainless steel (optional) | 3 |
| 2 | BAC-12 | 40250 | Volute, 1 1/4" x 1" | 1 |
| 3 | BAC-23-A | 40391 | Nut, 3/8" NF, cad plated | 1 |
| 4 | BAC-24-HYD-SS | 40400 | Washer, 3/8" star, stainless steel | 1 |
| 5 | BAC-26-HYD-VALOX | 40440 | Impeller, Valox, keyway | 1 |
| 5 | BAC-26-HYD-Cl | 40442 | Impeller, cast iron, keyway (optional) | 1 |
| *6 | BAC-7V | 40151 | Seal, mechanical, Viton (includes 40160) | 1 |
| 6 | BAC-7SC | 40152 | Seal, mechanical, silicon carbide (includes 40160), optional | 1 |
| 6A | 40160 | 40160 | O-ring, shaft seal | 1 |
| *7 | BAC-4 | 40010 | Gasket, 4 hole, (obsolete 1996) | 1 |
| *7 | BAC-4A | 40005 | O-ring, body seal | 1 |
| 8 | BAC-14-HYD | 40300 | Mounting frame (for -200 Series hydraulic motors) | 1 |
| 9 | 40950 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 4 |
| 9 | 40930 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) | 4 |
| 10 | BAC-54 | 41130 | Slinger | 1 |
| 11 | BAC-33 | 40810 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 12 | BAC-37 | 40870 | Ball bearing, sealed, BAC-6 shaft | 2 |
| 13 | BAC-32 | 40790 | Snap ring, external, BAC-6 shaft | 2 |
| 14 | BAC-32-S | 40795 | Spacer for BAC-6 shaft | 1 |
| 15 | BACH-25 | 40420 | Key, 1/8" x 1/8" x 1/2" | 1 |
| 16 | BAC-6-HYD | 40060 | Shaft, 5/8" diameter, keyway and tang slot (optional) | 1 |
| 16 | BAC-6-HYD-SS | 40061 | Shaft, 5/8" diameter, keyway and tang slot, stainless steel | 1 |
| 17 | S200 | 40161 | Seal support spacer, 200 Series motor lip seal; effective 6/00 | 1 |
| 18 | BAC-76-HYD | 41380 | Coupling for hydraulic motor | 1 |
| 19 | BAC-75-HYD-202 | 41368 | Hydraulic motor, 2 GPM | 1 |
| 19 | BAC-75-HYD-203 | 41367 | Hydraulic motor, 3 GPM | 1 |
| 20 | 41256 | 41256 | Cap screw, 5/16" NC x 3 1/2" hex head (for 204 and 203 motor) | 4 |
| 20 | 41250 | 41250 | Cap screw, 5/16" NC x 3 1/4" hex head (for 202 motor) | 4 |
| # | RK-FMC | 52700 | Repair kit for FMC series pump | 1 |
| # | RK-BAC-75-HYD | 41371 | Repair kit for 202, 203, 204, 206, and 210 motor | 1 |
| # | RD-BAC-75-HYD-L | 41374 | Repair kit for 200 series HYD motors equipped with Teflon lip seal | 1 |
