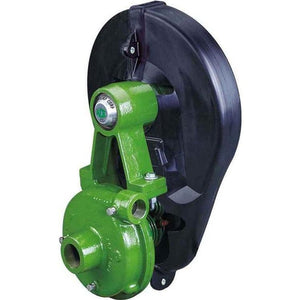

PTO Belt Driven Cast Iron Pump with 1-1/4" Suction x 1" Discharge Ace Pumps PTOC-600-B
1” (25.4mm) stub shaft for installation on trailer sprayers driven by PTO tumblerod Material: Cast Iron, Instruction Manual: Ace Pumps PTOC-600-B Instruction Manual, Technical Specifications: Ace Pumps PTOC-600-B Product Specifications, Ace Pumps EDP #: 48400, Power Type: PTO Belt Driven, Inlet: 1-1/4" NPT, Outlet: 1" NPT, Maximum Flow Rate (GPM): 65, Maximum Pressure (PSI): 80, Part Breakdown:
| Reference Number | Part Number | EDP Number | Description | Required |
| 1 | BAC-10-S | 40190 | Shaft, 1” Tumblerod stub | 1 |
| 2 | BAC-10-175-20SP | 40180 | Shaft, 1-3/4” 20 Tooth PTO spline, includes BAC-11-175 | 1 |
| 3 | BAC-10-21SP | 40220 | Shaft, 1 3/8” 21 Tooth PTO spline, includes BAC-11 | 1 |
| 4 | 40960 | 40960 | Nut, 3/8” NC, jam | 3 |
| 5 | BAC-40 | 40940 | Set screw, 3/8” NC slotted | 3 |
| 6 | BAC-11-175 | 40236 | Locking collar, split ring (for BAC-10-175-20SP shaft) | 1 |
| 7 | BAC-11 | 40235 | Locking collar, split ring (for BAC-10-21SP shaft) | 1 |
| 8 | BAC-11-1 | 40237 | Set screw (for BAC-11 and BAC-11-175 locking collar) | 1 |
| 9 | BAC-10-6SP-QC | 40210 | Shaft, 1-3/8” 6 Tooth PTO spline, for quick coupler | 1 |
| 10 | BAC-83-QC | 41470 | Ball for quick coupler | 3 |
| 11 | BAC-82-QC | 41460 | Spring for quick coupler | 1 |
| 12 | BAC-81-QC | 41450 | Ball retainer sleeve for quick coupler | 1 |
| 13 | 41250 | 41250 | Cap screw, 5/16” NC x 3-1/4”, hex head | 1 |
| 14 | 41300 | 41300 | Set screw, 3/8” NC x 5/8”, allen head | 2 |
| 15 | BAC-30-10-M | 40750 | Pulley, 6.375” P.D. x 2” Bore, Poly-V (for PTOC-1000-21SP & -B) | 1 |
| 15 | BAC-30-175 | 40745 | Pulley, 6.375” P.D x 2-3/8” Bore, Poly-V (for PTOC-1000-20SP) | 1 |
| 16 | BAC-63 | 41260 | Nut, 5/16” NC, self locking, for tumblerod drive | 1 |
| 17 | BAC-34 | 40830 | Snap ring, internal, BAC-15 bearing housing | 2 |
| 18 | BAC-27 | 40520 | Name plate | 1 |
| 19 | BAC-35 | 40840 | Snap ring, external, BAC-10 drive shaft | 1 |
| 20 | BAC-31-1 | 40781 | Bearing, sealed, BAC-10 drive shaft | 2 |
| 21 | BAC-38-1 | 40905 | Spacer, bearing, BAC-10 shaft | 1 |
| 22 | BAC-44 | 40990 | Washer, 3/8” locking | 2 |
| 23 | BAC-45 | 41010 | Nut, hex, 3/8” NC | 2 |
| 24 | BAC-15 | 40340 | Housing, PTO drive shaft bearing housing | 1 |
| 24 | BAC-15-B | 40370 | Housing, tumblerod drive shaft bearing housing with mounting base | 1 |
| 25 | BAC-10-6SP | 40200 | Shaft, 1-3/8” 6 Tooth PTO spline drive | 1 |
| 26 | BAC-51 | 41090 | Shaft, 3/8” x 1/2” x 1-1/2” key, PTO drive shaft | 1 |
| 27 | 40960 | 40960 | Nut, jam, 3/8” NC | 3 |
| 28 | BAC-40 | 40940 | Set screw, 3/8” NC, slotted | 3 |
| 29 | BAC-30-10 | 40740 | Pulley, 10.6” P.D. x 2” bore Poly-V pulley, 10 groove (for PTOC-600) | 1 |
| 30 | 41300 | 41300 | Set screw, 3/8” NC x 5/8”, allen head | 2 |
| 31 (1) | BAC-28-10 | 40610 | Belt, Poly-V, 10 groove (for PTOC-600) | 1 |
| 31 (2) | BAC-28-10-M | 40620 | Belt, Poly-V, 10 groove (for PTOC-1000) | 1 |
| 32 | BAC-53 | 41110 | Pipe plug, 1/8” NPT | 3 |
| 32 | 41120 | 41120 | Pipe plug, 1/8” NPT, stainless steel (optional) | 3 |
| 33 | BAC-12 | 40250 | Volute 1-1/4” x 1”, cast iron | 1 |
| 34 | BAC-26-CI | 40432 | Impeller, cast Iron, left hand thread (optional) | 1 |
| 34 | BAC-26-VALOX | 40430 | Impeller, Valox, left hand |
